No engine has no 12V NEMA17 200 step/rev 350mA
No engine has no 12V NEMA17 200 step/rev 350mA
ADA 324
data-lang="en">
A stepper motor NEMA17 format with 200 not by revolution.
Guarantee of quality This product is an official product of the brand Adafruit
Estimation de livraison entre le 30/06/2022 et le 02/07/2022
Colissimo Domicile - sans signature
A partir de: 5,45 €
Customers who bought this product also bought:
- Block battery 8xAA with ON-OFF switch and connector Jack 2,1 mm
- Adafruit Feather M0 WiFi with uFL - ATSAMD21 + ATWINC1500 - fw 19.4.4
- Breadboard - 830 contacts
- Inertial 9 - DOF Accel/Mag/Gyro + Temp - LSM9DS1
- Rigid wire 22AWG yellow 25 ft spool
- 5 X capacitor 100µF
- 5 X 5 mm infrared LED
- On-OFF touch switch pre-wired
- Prototyping Plate Kit for Raspberry Pi Pi
More info
Description
This engine is ideal for your robotic projects. This is a bipolar stepper motor 4 wire with 1.8 ° by not for a flexible movement, and shock. This engine has a current 350mA max, which allows to drive easily with a Motor Shield for Arduino or another driver from engine.

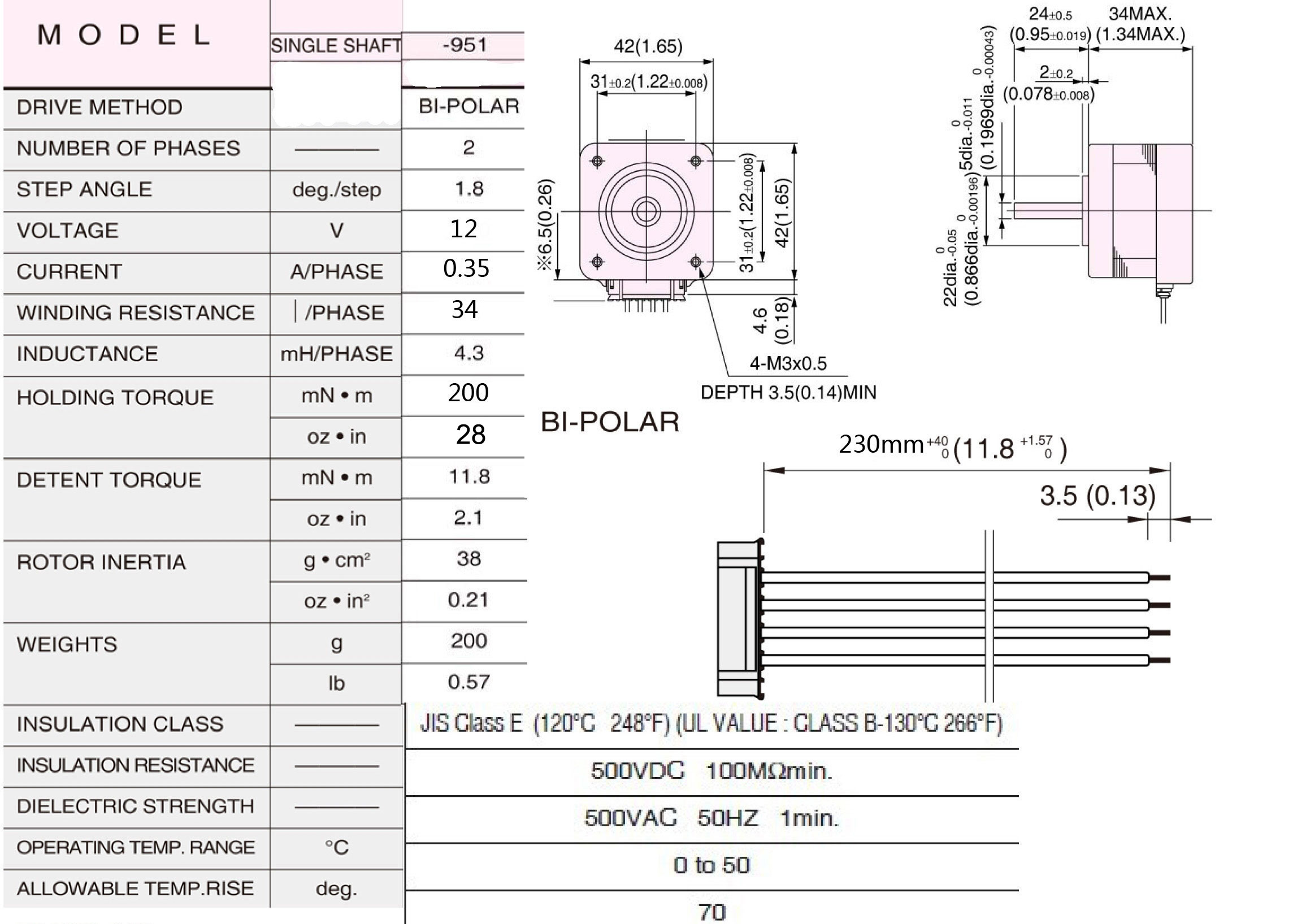

Features
- 200 not by revolution, 1.8 degrees
- Reel # 1: red and yellow. Coil # 2 green & brown.
- Bipolar motor, requires 2 H bridges bridges!
- Size 42 mm / 1.65 "square body
- Attachment: 31mm / 1.22 square mounting holes screws metric 3 mm "(M3)
- shaft of diameter 5mm, 24 mm long, with a machined flat
- Nominal voltage 12V (you can use a lower voltage, but the couple will drop) with current 350mA max
- Couple 28 oz * in, 20 N * cm, 2 Kg * cm
- 35 ohms per coil
